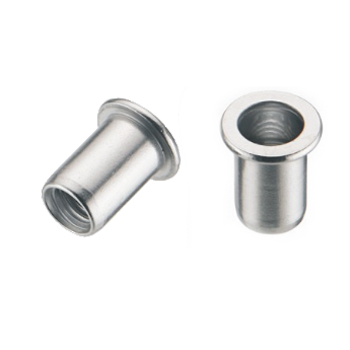

Flat Head Rivet Nut
Flat Head Rivet Nut

产品型号:A.GF 原产地:台湾 材质:Aluminum

详细规格及用途描述

PART NO.: A.GF3-20
THREAD SIZE: M3x0.5
GRIP RANGE: 0.5-2.0
HOLE SIZE+0.1/-0: 5.00
A±0.3: 7.00
B max.: 4.97
C±0.3: 9.30
H±0.2: 0.80

PART NO.: A.GF4-20
THREAD SIZE: M4x0.7
GRIP RANGE: 0.5-2.0
HOLE SIZE+0.1/-0: 6.00
A±0.3: 10.00
B max.: 5.97
C±0.3: 10.80
H±0.2: 0.80

PART NO.: A.GF4-30
THREAD SIZE: M4x0.7
GRIP RANGE: 1.5-3.0
HOLE SIZE+0.1/-0: 6.00
A±0.3: 10.00
B max.: 5.97
C±0.3: 11.80
H±0.2: 0.80

PART NO.: A.GF4-40
THREAD SIZE: M4x0.7
GRIP RANGE: 2.5-3.0
HOLE SIZE+0.1/-0: 6.00
A±0.3: 10.00
B max.: 5.97
C±0.3: 12.80
H±0.2: 0.80

PART NO.: A.GF5-30
THREAD SIZE: M5x0.8
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 11.00
B max.: 6.97
C±0.3: 13.00
H±0.2: 1.00

PART NO.: A.GF5-40
THREAD SIZE: M5x0.8
GRIP RANGE: 3.0-4.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 11.00
B max.: 6.97
C±0.3: 14.00
H±0.2: 1.00

PART NO.: A.GF5-50
THREAD SIZE: M5x0.8
GRIP RANGE: 4.0-5.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 11.00
B max.: 6.97
C±0.3: 15.00
H±0.2: 1.00

PART NO.: A.GF5-60
THREAD SIZE: M5x0.8
GRIP RANGE: 5.0-6.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 11.00
B max.: 6.97
C±0.3: 16.00
H±0.2: 1.00

PART NO.: A.GF6-30
THREAD SIZE: M6x1.0
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 9.00
A±0.3: 13.00
B max.: 8.97
C±0.3: 16.00
H±0.2: 1.50

PART NO.: A.GF6-45
THREAD SIZE: M6x1.0
GRIP RANGE: 3.0-4.5
HOLE SIZE+0.1/-0: 9.00
A±0.3: 13.00
B max.: 8.97
C±0.3: 17.50
H±0.2: 1.50

PART NO.: A.GF8-30
THREAD SIZE: M8x1.25
GRIP RANGE: 0.7-3.0
HOLE SIZE+0.1/-0: 11.00
A±0.3: 16.00
B max.: 10.97
C±0.3: 18.50
H±0.2: 1.50

PART NO.: A.GD8-44
THREAD SIZE: M8x1.25
GRIP RANGE: 3.05-5.5
HOLE SIZE+0.1/-0: 11.00
A±0.3: 16.00
B max.: 10.97
C±0.3: 21.00
H±0.2: 1.50
PART NO.: A.GF8-75
THREAD SIZE: M8x1.25
GRIP RANGE: 5.5-7.5
HOLE SIZE+0.1/-0: 11.00
A±0.3: 16.00
B max.: 10.97
C±0.3: 23.00
H±0.2: 1.50

PART NO.: A.GF10-30
THREAD SIZE: M10x1.5
GRIP RANGE: 1.0-3.0
HOLE SIZE+0.1/-0: 13.00
A±0.3: 19.00
B max.: 12.97
C±0.3: 22.50
H±0.2: 2.00

PART NO.: A.GF10-45
THREAD SIZE: M10x1.2
GRIP RANGE: 3.0-4.5
HOLE SIZE+0.1/-0: 13.00
A±0.3: 19.00
B max.: 12.97
C±0.3: 24.00
H±0.2: 2.00
