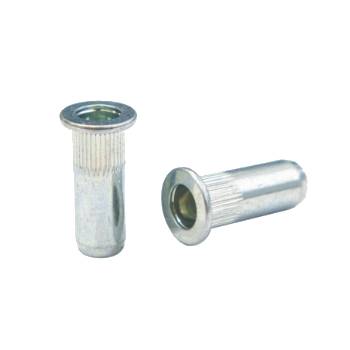

Flat Head Rivet Nuts
Flat Head Rivet Nuts

产品型号:MF CL 原产地:台湾 材质:Stainless Steel

详细规格及用途描述

Knurled Cylindrical Threaded Inserts, Flat Head, Closed Type
Our company is one of the main producers of Knurled Nut and Stainless Steel Rivet Nut in Taiwan, and is highly regarded for quality products.


PART NO.: SS. MF4-CL
THREAD SIZE: M4x0.7
GRIP RANGE: 0.5-2.5
HOLE SIZE+0.1/-0: 6.00
A±0.3: 9.00
B max.: 5.97
C±0.3: 16.50
H±0.2: 1.00

PART NO.: SS. MF5-CL
THREAD SIZE: M5x0.8
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 10.00
B max.: 6.97
C±0.3: 19.00
H±0.2: 1.00

PART NO.: SS. MF6-CL
THREAD SIZE: M6x1.0
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 9.00
A±0.3: 12.00
B max.: 8.97
C±0.3: 22.50
H±0.2: 1.50


PART NO.: SS. MF8-CL
THREAD SIZE: M8x1.25
GRIP RANGE: 0.7-3.0
HOLE SIZE+0.1/-0: 11.00
A±0.3: 15.00
B max.: 10.97
C±0.3: 25.50
H±0.2: 1.50

PART NO.: SS. MF10-CL
THREAD SIZE: M10x1.5
GRIP RANGE: 1.0-4.0
HOLE SIZE+0.1/-0: 13.00
A±0.3: 17.00
B max.: 12.97
C±0.3: 30.00
H±0.2: 2.00
