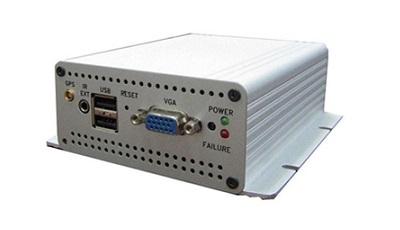

DM-1204AT 4路车用混和型数位影像录影机
DM-1204AT 4路车用混和型数位影像录影机

产品型号:DM-1204AT 原产地:台湾

详细规格及用途描述

DM-1204AT

Local
#4CH 1080p IP CAM + 4CH (TVI/)AHD Hybrid Mobile DVR
#High Profile video compression/decompression with configurable quality
#Hexaplex operation - simultaneous record, live, playback, backup, control, & remote access
#Max. record capabilities: IP CAM: 120/100fps@1080p/720p, Analog: 60fps@1080p, 120/100fps@1080p-lite/720p/960H
#Max. playback capabilities: 60fps@1080p, 120/100fps@1080p-lite/720p/960H
#Max. 40Mbps incoming bandwidth for IP CAM
#Playback search by time or event (alarm, motion, video loss, acceleration, brake, speed, & left/right turn)
#Smart search & playback
#1 SDXC card with storage up to 2TB
#Digital watermark
#Car speeding pulse input, car engine revolution signal input
#Ethernet and USB 4G/3G dongle support for remote access, with dual streaming support
#Built in G sensor for alarm of acceleration, brake, left/right turn
#Built in GPS to support Google Earth and Google Maps
#Delay Off capability

Remote
#DVR browser utility
#Support DDNS Server
#Push alarm notification for portable device
#Two-way audio capabilities
#Audio broadcasting
#Dynamic electronics maps for CMS
#Remote setup, monitoring, backup, alarm notification, & remote software upgrade
#iPhone/iPad/Mac/Android/MS-Windows remote software
#1 I.E./Firefox/Chrome/App for multiple DVRs
#Configurable HTTP/SMTP/FTP/Control/Data port
#Support Google Earth and Google Map
#Support UPnP, P2P and QR code (Optional)
#MS-Windows/iOS/Android SDK for the integration with different applications


Specification:

System
Multiplex: Hexaplex operation - simultaneous record, live, playback, backup, control, & remote access

Video
Format: IP-CAM: ONVIF Profile S ; Analog: TVI/AHD or NTSC/EIA or PAL/CCIR
Input: IP-CAM: up to 4-CH 1080p ; Analog: up to 4-CH TVI/AHD 1080p, BNC, 1Vp-p/75ohm ; Total Max. 8-CH: 4CH Analog + 4CH IP-CAM
Output: VGA ━ up to 1920*1080 ; CVBS ━ NTSC - 720*480, PAL - 720*576
3-D de-interlace: Yes

Audio
Input: 1, line-in level (100mV-1Vrms)
Output: 1, line-out level (up to 1Vrms)

Record
Compression: Audio: ADPCM
Max frame rate: IP-CAM: 120/100fps@1080p/720p,Up to 40Mbps incoming bandwidth for IP-CAM ; Analog: 60fps@1080p, 120/100fps@1080p-lite/720p/960H
Mode: Manual/Schedule/Alarm/Motion/Acceleration/Brake/Speed/Left-Right-Turn
Pre-record time: 0 - 10 seconds
Post-record time: 0 - 60 minutes

Display
Frame rate: Up to 30/25 FPS per camera
Digital Zoom: X2, X4

Playback
Max frame rate: 60fps@1080p, 120/100fps@1080p-lite/720p/960H
Search: Smart search, Date/time, Camera, Alarm, Motion, Video Loss, Acceleration, Brake, Speed, & Left/Right Turn
Operation: Play, Fast Forward, Backward, Pause, Stop, Snapshot, etc.

Storage
SD/SDXC: 1, up to 2TB
Backup: 1 USB 2.0 ports ; Self playback for backup files

Alarm
Input: 2 contact or TTL/CMOS signals, polarity selectable
Output: 1 Normally Open or 1 Normally Closed relay output
Triggered by: Sensor input, Video loss, Motion, Speed, Acceleration, Brake (with built-in G sensor), & Left/Right Turn

Network
Ethernet: 1 RJ-45 10/100BaseT Ethernet connector
Protocol: TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP, TSP, NTP, RTSP, UPnP, P2P
Remote: Support Windows 8/7/Vista/XP/2003; I.E/Firefox/Chrome for DVR; App for Mac/iPhone/iPad/Android phone and Tablet PC

Control/ GPS/ Car Speed/ Engine
Revolution Remote Controller: 1 remote controller through built-in sensor or wired remote sensor
RS-232: 1 set (3-pin: Tx, Rx, GND)
G sensor / GPS: Built-in (Antenna optional)
Car speed: 2-pin for car speeding pulse input with configurable parameters or from GPS
Engine Revolution: 2-pin for car engine revolution signal input

Setup
Local: On screen setup via remote controller and/or mouse
Remote: Setup & upload via Windows/Mac/iPad/Android phone application software

Reliability
System recovery: Auto power on after power loss recovery; Watch Dog Timer
Security: Multi-level password (4 levels, up to 18 accounts) protection with authentication key for remote access
Operating shock: 8G, 11ms (20 per five seconds max)
Operating vibration: 5 ~ 500Hz, 2.7G rms
Moisture proof: With spray coating

Weights & Measures
Dimension & Weight: 118.5(W) x 128(D) x 43.4(H)mm; 400g

Power
Source: +12 or +24VDC, with acceptable rang +8.8 ~ 35VDC
Consumption: 10W
Delay off: Yes, with configurable timer

Operating Temperature: -15oC ~ +50oC



http://www.deeplet.com.tw/product_mdvr/products_detail_dm1204at.html
