Power inverters
- 產品型號:
- WT-12S-12E, WT-12S-24E
- 原產地:
- 台灣
詳細規格及用途描述

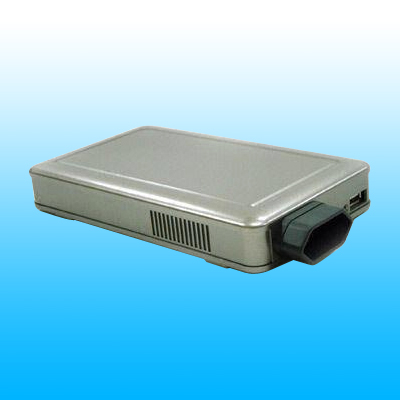

WT-12S-12E, WT-12S-24E 120W Pure Sine wave Power Inverter
Specifications:
Output power/continuous: 120W
Output voltage: 230V ±3%
Output frequency: 50Hz ±1%
Output wave form: pure sine wave
Total harmonic distortion: <3%
Input voltage range : 12V: 10V-16.5V; 24V: 20V-33V
Maximum efficiency: 88%
No load current: 12V : <0.5A; 24V: <0.3A
Input current maximum: 12V: 12A; 24V: 7.5A
Low battery shutdown: 12V: 10V; 24V: 20V
USB power: 5V ±0.1V/500mA
Fan: temperature control
Dimensions (L x W x H): 204x105x30 mm
Weight: 473 g
Operation Temperature: 0~40゚C
CE, E-MARK APPROVAL
Protection:
Low battery shutdown
Input over voltage shutdown
Over load
Over temperature
Short circuit
