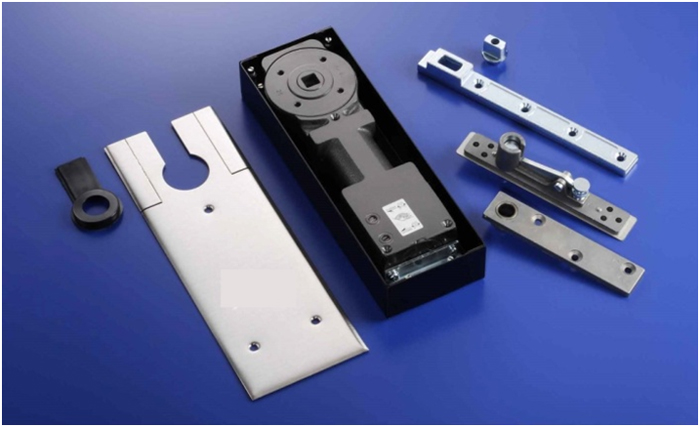

Universal Floor Spring
Universal Floor Spring

產品型號:JPF-720 Series 原產地:台灣

詳細規格及用途描述

JPF-720 Series
Universal Floor Spring
is designed for heavy traffic door, compact design & low profile cement case suits for thin-slab applications where
floor depth is limited.
Feature & Specification :
* Floor recess : 296mm x 96mm x 48mm
* Adjustable Closing & Latching Speed.
*Maximum door open angle 130°
*Mechanical Hold Open at 90°
* Exchangeable Spindle design up to 50mm
*Cam system for easy door open.
* Closer mechanism adjustment in loose box for
Length : 6mm Width : 6mm Height : 4mm
* Max. Door Weight 150 kgs.
* Suitable for single & double action doors.

Technical Data
* Available for Light, Medium, and Heavy
Closing Size: Light Duty
Closing Force: 20 Nm
Max. Door Width: 900 mm

Closing Size: Medium Duty
Closing Force: 25 Nm
Max. Door Width: 1000mm

Closing Size: Heavy Duty
Closing Force: 33Nm
Max. Door Width: 1100mm
Warranty – 2 Years

Universal Floor Spring
