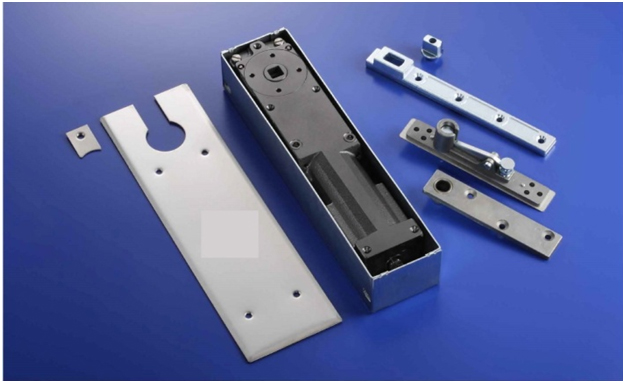

Universal Floor Spring
- 產品型號:
- JPF-750 Series
- 原產地:
- 台灣
詳細規格及用途描述
JPF-750 Series
Universal Floor Spring
is designed for special application door with 180 opening angle. This is the best choice for heavy traffic & full rang
door.
Feature & Specification :
* Floor recess : 341mm x 78mm x 60mm
* Adjustable Closing & Latching Speed.
*Maximum door open angle 180°
*Mechanical Hold Open at 90°
* Hydraulic control 180° to 0° .
*Cam system for easy door open.
* Max. Door Weight 300 kgs.
* Suitable for single door.
Technical Data
* Available for Light, Medium, and Heavy
Closing Size: Heavy Duty
Adjustable Closing Force: 20 ~ 50 Nm
Max. Door Width: 1200 mm
Warranty – 2 Years
