床型立橫兩用銑床
Hot- 產品型號:
- DM-450VH
- 顏色:
- 接受訂製
詳細規格及用途描述

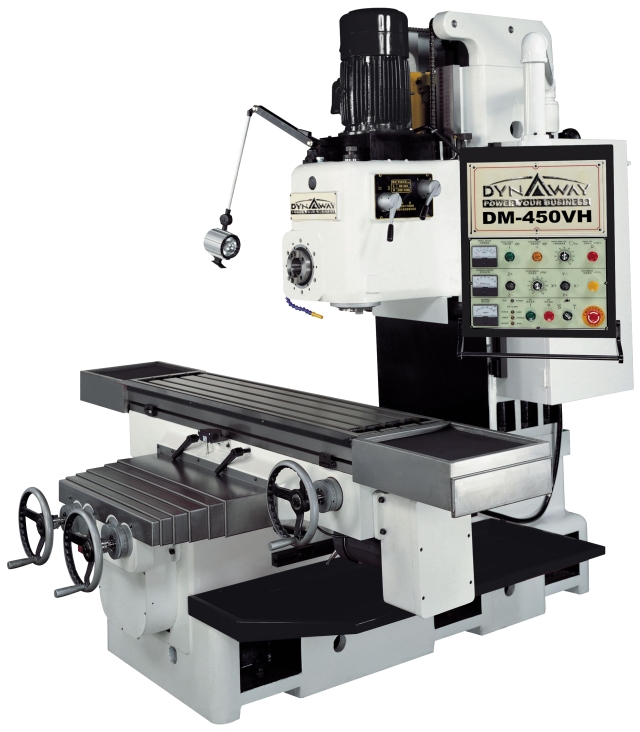

Model: DM-450VH
SPINDLE TAPER---NT#50
SPINDLE SPEEDS---45~1500RPM(Variable/18-STEP CHANGE)
SPINDLE MOTOR---10HP x 4P AC
TABLE SIZE---17.7” x 59”(450 x 1500mm)
X/Y/Z AXIS TRAVEL---1100/720/780mm
MAX. LOADING WEIGHT---1000kg
AUTO LUBRICATION SYSTEM
SPINDLE LUBRICATION SYSTEM
ELECTRIC CONTROL BOX
BALL SCREWS ON X, Y, Z AXIS
PRACTICAL TELESCOPIC COVER
AIR DRAW BAR
HALOGEN WORK LIGHT
HORIZONTAL MILLING HEAD
TOOLS & TOOL BOX
OPERATION MANUAL
NET WEIGHT: 4200kg
