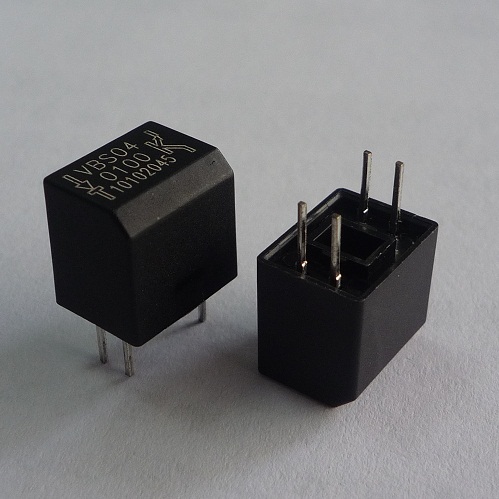

Model:VBS04 Country of Origin:Taiwan

Detail Specifications / Descriptions

●FUNCTIONS
Omni-directional Vibration Detecting

●APPLICATIONS
1.Wake up systems for power saving,
Such like remote controllers
2. GPS starting system
3. Alarm system
4. Anti-theft、Anti-tampered devices.
5. Automatically flashing for bike lamp
6. Subsidiary night lamp flashing for car
7. Outsole of sporting shoes flashing
8. Toys

●FEATURES
1.Housing made of high insulation plastic material, free from electric conduction and rust problem.
2.Detecting with photo transistors, generating highly reliable and stable signals.
3.All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
4.Simple ON and OFF signals, easy for design.
5.RoHS compliance, an ideal substitute for mercury switch.
6.A more economical vibration detection option than IC design solution.
7.All made in Taiwan and examined before shipment.

●PATENTS
1.TAIWAN Patent No. I 226467
2.U.S.A. Patent No. US 6,740,867 B2
3.CHINA Patent No. ZL 02 1 46662.9

●DIMENSIONS / OPERATION / P.C.B. LAYOUT (Unit: mm, Tolerance: ±0.25mm)

●IR Reflow Reference Profile (For SMT Type)
Following reflow information is for reference only, we suggest users to process as per the recommendation of soldering flux manufacturer.

●NOTES
1.Suggestion for usage:For vibration usage or application,we suggest to add hysteresis for IC.
2.For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

●PRECAUTIONS FOR USE
1.If the products is intended to be used for other endurance equipment requiring higher safety and reliability such as life support system, space and aviation devices, disaster and safety system, it’s necessary to make verification of conformity or contact us for the details before using.
2.Do not try to clean the switch with a solvent or similar substance after the soldering process.
3.Use water-soluble flux may damage the switch.
4.When the soldering temperature exceeds specifications, the switch may fall apart.
5.Do not use switch in the environment of high humidity,because such an environment may cause the leakage current between the terminals.
6.More than the rated load may cause fire, so do not use more than the load
7.In the circuit,switch should not be near or directly connected with the magnetic component solder joints (for example: relays, transformers, etc.).
