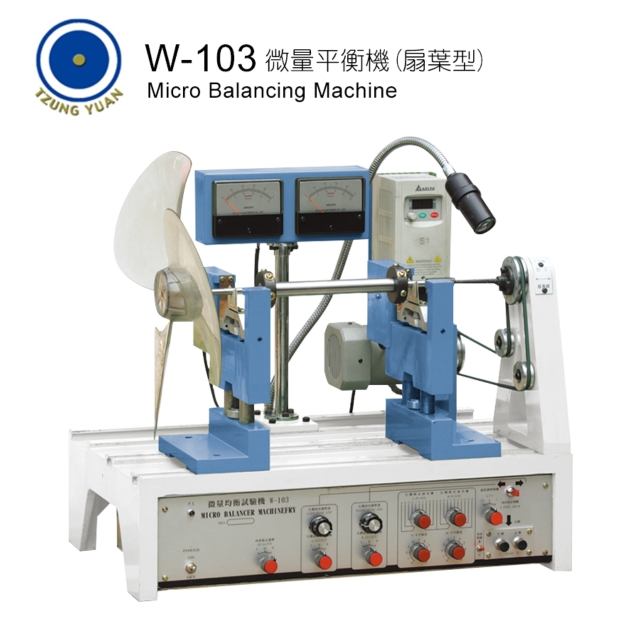

Micro Balancing Machine
- Model:
- W-103
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Good for:
Air dryer,Blender,Vacuum cleaner,Toys Motor,Range hood,Electric fan,Fan 3"-16" Eggbeater,
Sewing machine,Electro tools rotor.
Customized balancing machine.
| Features： | |
| ． | Flashing light system is adopted, the unbalance angel is easy to be located. |
| ． | The filter has the sensitive feature, that will eliminate the out coming vibration influence. |
| ． | Equipped with filter frequency check installement which can reserve the accuracy of filtering frequency. |
| ． | Two magnifiers and two lifht meters indicate the unbalances of both left and right ends separately at same time. |
| ． | Integrated circuit(IC)is adopted, assuring longer lift and greater reliability. |
Model | W-103 |
Weight rang of workpiece | 0.1 – 3 kg |
Workpiece diameter | 400 mm MAX |
Journal Diameter | 20 mm MAX |
Distance between bearings | 300 mm MAX |
Balancing Speed | 600 – 2,000 RPM |
| Precision | 1 μ |
| Drive Motor | 120 W Frequency Speed |
Weight | 70 kg |
