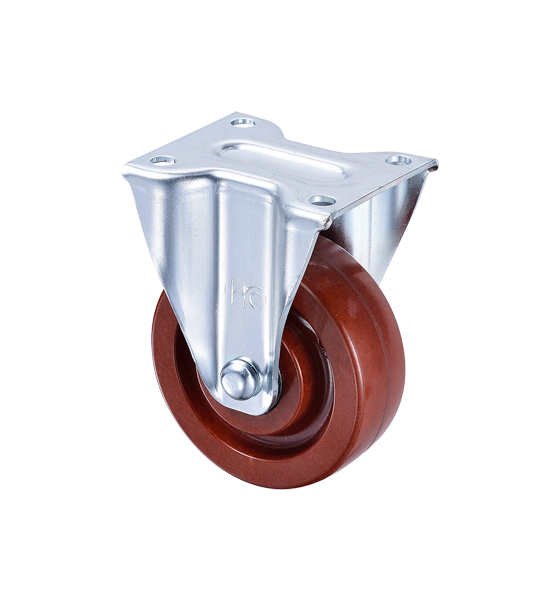

4 inch Phenolic High Temperature Trolley Castors Wheels
- Model:
- EB100FX-PHP
- Country of Origin:
- Taiwan
- Material:
- Phenolic Resin
Detail Specifications / Descriptions
Type: Rigid Caster
Wheel Diameter x Width: 4x1¼ inch (100x32 mm)
Overall Height: 134 mm
Load Capacity: 300 kg
Bolt Hole Center: 48x70 mm
Plate Size: 81x92 mm
Bolt Hole: Φ10x16
Wheel Bearing: #6201 Double Ball Bearings
Fork Structure: Pressed Steel；Zinc Plated
Weight: 0.74 kg
1. Wheel: Phenolic wheel filled with fabric and it provides the features of superior floor protection, and resists hard impacts, most chemicals and steam.
2. Bearing: #6201 double ball bearings to improve the rolling.
3. Fork: Rigid type. Pressed Steel and one-piece formed frame. Zinc Plated.
4. High temperature resistance: -20~+220℃
