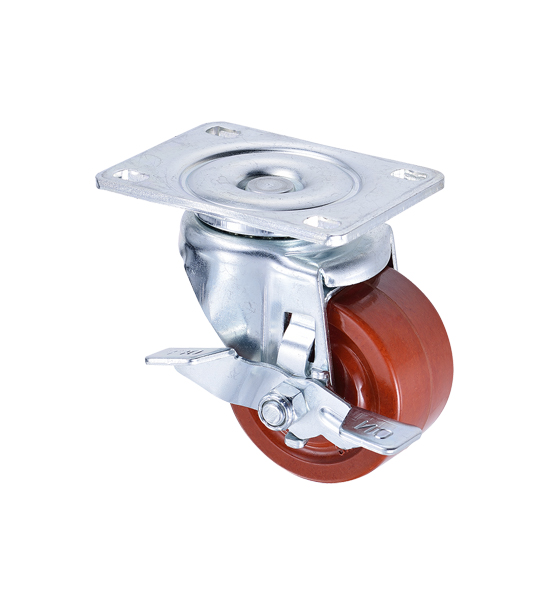

3" Caster Rollers Small High Temperature Wheels for Carts
- Model:
- T32BS-PHR
- Country of Origin:
- Taiwan
- Material:
- Phenolic Resin
Detail Specifications / Descriptions
Type: Side Wheel Brake Caster
Wheel Diameter x Width: 3x2 inch (75x50 mm)
Overall Height: 107 mm
Load Capacity: 300 kg
Bolt Hole Center: 59x81 mm
Plate Size: 80x105 mm
Bolt Hole: Φ9x12
Wheel Bearing: Roller Bearing
Fork Structure: Pressed Steel；Zinc Plated
Eccentricity: 29 mm
Weight: 1.17 kg
1. Wheel: Phenolic wheel filled with fabric and it provides the features of superior floor protection, and resists hard impacts, most chemicals and steam.
2. High temperature resistance: -20~+220℃
3. Bearing: Roller bearing to increase the load capacity.
4. Fork: Side Wheel Brake with top plate. Pressed steel and integrally formed. Zinc plated.
