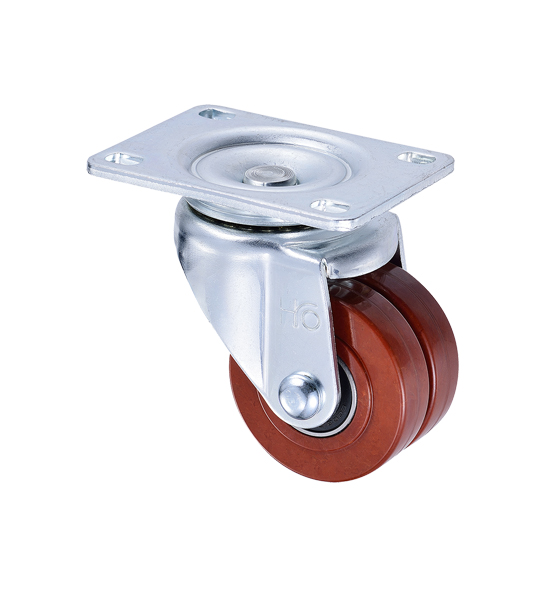

3" Thermosetting Phenolic Twin Wheel Heavy Duty Caster
- Model:
- T32SW-PHP-DW
- Country of Origin:
- Taiwan
- Material:
- Phenolic Resin
Detail Specifications / Descriptions
Type: Swivel Caster
Wheel Diameter x Width: 3x2 inch (75x50 mm)
Overall Height: 107 mm
Load Capacity: 300 kg
Bolt Hole Center: 59x81 mm
Plate Size: 80x105 mm
Bolt Hole: Φ9x12
Wheel Bearing: #6202 Double Ball Bearings
Fork Structure: Pressed Steel；Zinc Plated
Eccentricity: 29 mm
Weight: 1.08 kg
1. Wheel: Phenolic wheel filled with fabric and it provides the features of superior floor protection, and resists hard impacts, most chemicals and steam.
2. High temperature resistance: -20~+220℃
3. Wheel: Dual wheel for enhancing the structures.
4. Bearing: #6202 double ball bearings and sleeve bearings to improve the rolling and stability.
5. Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
