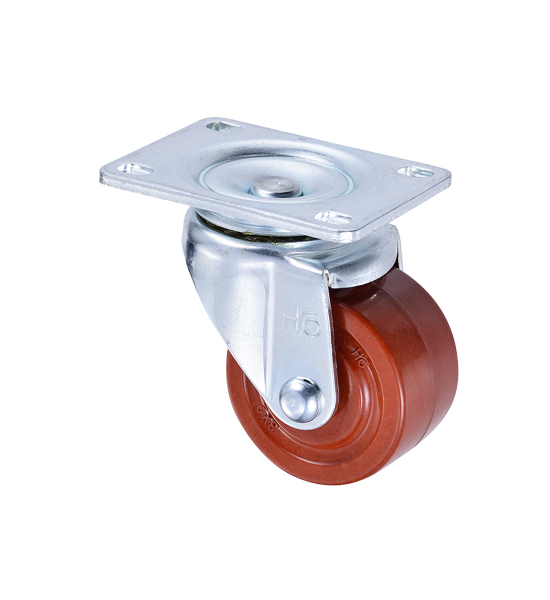

Phenolic Small Heavy Duty Caster Wheels Wholesale

Phenolic Small Heavy Duty Caster Wheels Wholesale

Model:
T32SW-PHR
Country of Origin:
Taiwan
Material:
Phenolic Resin

Detail Specifications / Descriptions

Type: Swivel Caster
Wheel Diameter x Width: 3x2 inch (75x50 mm)
Overall Height: 107 mm
Load Capacity: 300 kg
Bolt Hole Center: 59x81 mm
Plate Size: 80x105 mm
Bolt Hole: Φ9x12
Wheel Bearing: Roller Bearing
Fork Structure: Pressed Steel;Zinc Plated
Eccentricity: 29 mm
Weight: 1.13 kg

1. Wheel: Phenolic wheel filled with fabric and it provides the features of superior floor protection, and resists hard impacts, most chemicals and steam.
2. High temperature resistance: -20~+220℃
3. Bearing: Roller bearing to increase the load capacity.
4. Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.

Phenolic Small Heavy Duty Caster Wheels Wholesale
