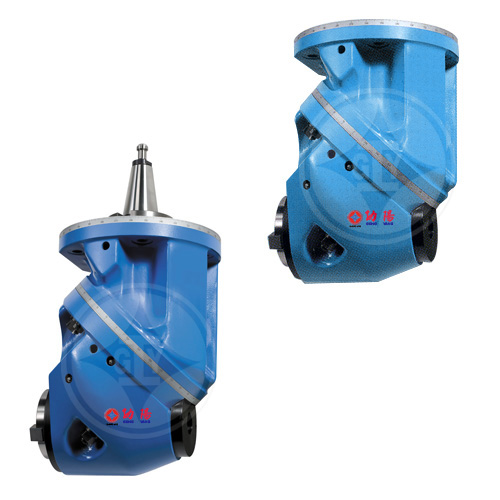

C45, C45N, C50, C50N Universal Milling Head, Multi-angular Milling Head, رؤساء طحن

C45, C45N, C50, C50N Universal Milling Head, Multi-angular Milling Head, رؤساء طحن

Hot
Model:
C45, C45N, C50, C50N
Country of Origin:
Taiwan
Color:
Blue

Detail Specifications / Descriptions

C45/C45N/C50/C50N Universal (Multi-angular) Milling Head — 360° angle adjustment via T-screw for vertical and cross milling; fits double-column milling machines, horizontal boring machines, and universal mills. Easy to operate for complex parts—ideal for boring, top-face cutting, and bevel trimming; gears and spindle are chromium-molybdenum alloy steel, quenched and precision-ground for long-term durability.

Features
Multi-angular Milling Head Characteristics:
1. Could change machine to make vertical milling and cross milling and any angle.
2. Volume is small, convenient operation, suitable to make complex of machine tools.
3. Loosen “T” screw to make 360° adjusting and choice the direction of milling tool. Reference the “List of angle confront” Please.
4. Suitable to planer for boring, cutting top face and bevel face trim.
5. Gear and spindle are made of chromium molybdenum alloy steel, through quenching and precise grinding.
6. The milling head can only tapping and screw socket process while reversing, can't cutting and drilling or other process, make machinery damaged.

規格
TYPEMax Tool Dia.Reduction RatioMax TorqueMax HorsepowerMax Use SpeedSpindle SteeringAccessory
C45ψ2001:138KW1000N.m1200rpm#50/ForwardM16×P2.0×67L-2Pieces
M16×P2.0×76L-3Pieces
C45Nψ1501:138KW850N.m2000rpm#50/ForwardM16×P2.0×67L-2Pieces
M16×P2.0×76L-3Pieces
C50ψ2001:142KW1200N.m1200rpm#50/ForwardM18×P2.5×87L-5Pieces
C50Nψ1501:142KW850N.m2000rpm#50/ForwardM18×P2.5×87L-5Pieces
