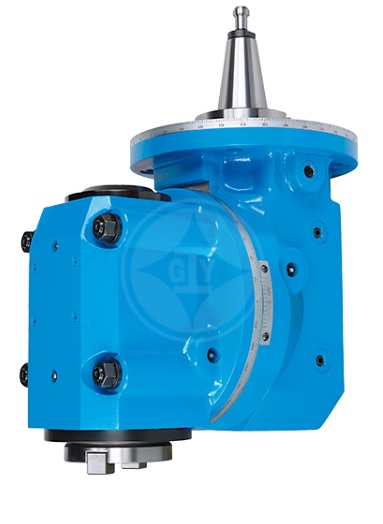

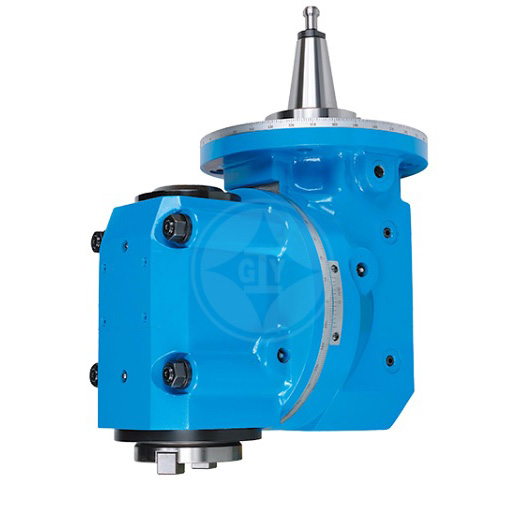

H45, H45N, H50, H50N Multi-angular Milling Head | Double Column Milling Machine Application

H45, H45N, H50, H50N Multi-angular Milling Head | Double Column Milling Machine Application

Model:

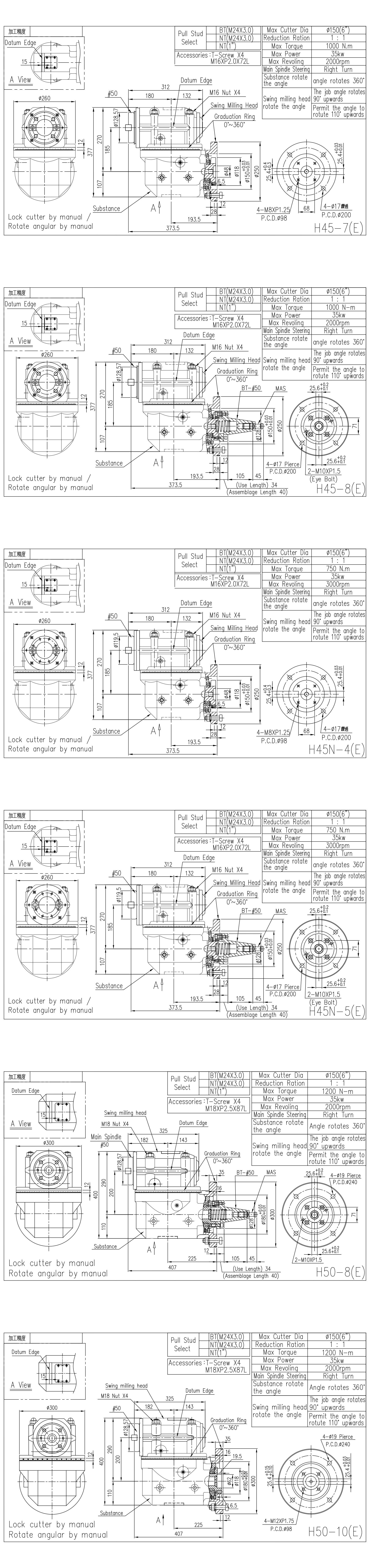

H45, H45N, H50, H50N
Country of Origin:
Taiwan
Color:

Detail Specifications / Descriptions

H45/H45N/H50/H50N Multi-angular (Universal) Milling Head—compact and easy to operate; switch between vertical and cross milling with full 360° adjustment. Gears and spindle are chrome-moly steel, quenched and precision-ground; suitable for planers to bore, top-face cutting and bevel trimming.

Features
Multiangular Milling Head Characteristics:
1. Could change machine to make vertical milling and cross milling and any angle.
2. Volume is small, convenient operation, suitable to make complex of machine tools.
3. Loosen “T” screw to make 360° adjusting and choice the direction of milling tool. Reference the “List of angle confront” Please.
4. Suitable to planer for boring, cutting top face and bevel face trim.
5. Gear and spindle are made of chromium molybdenum alloy steel, through quenching and precise grinding.
6. The milling head can only tapping and screw socket process while reversing, can't cutting and drilling or other process, make machinery damaged.


Application
