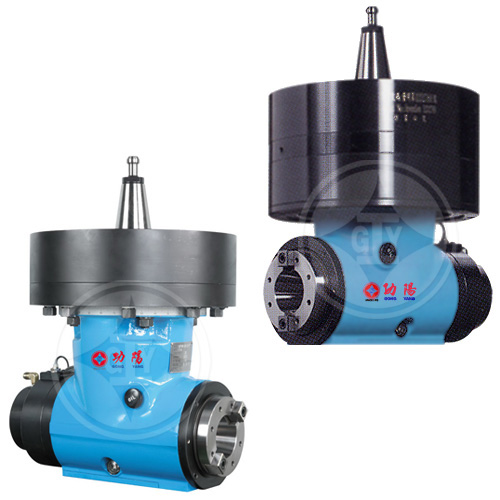

N75B Auto-indexing 90° Milling Head / Milling Head | For Double Column Milling Machine Application

N75B Auto-indexing 90° Milling Head / Milling Head | For Double Column Milling Machine Application

Hot
Model:
N75B
Color:
Blue

Detail Specifications / Descriptions

N75B Auto-indexing 90° Milling Head / Machine Tool Special Attachment Head extends tool reach and depth; 360° angle ring lets you swap cutter direction; compact, easy operation; chrome-moly spindle & gear, quenched and precision-ground; ball bearing supports high-speed light cut.

1.Conical-teeth positioning; hydraulic tool clamping/release.
2.Patented

Features
Characteristics:
1. Could change machine to make vertical milling.
2. Volume is small, convenient operation, suitable to make complex of machine tools.
3. To install a Graduated Ring which can be regulated 360° to choose the direction of the milling cutter.
4. The processing suitable to inner boring and milling of slots, end face repair, and beveled chamfering, etc.
5. Gear and spindle are made of chromium molybdenum alloy steel, through quenching and precise grinding.
6. Bearing are use ball bearing, suitable for high-speed and light cutting.
7. The milling head can only tapping and screw socket process while reversing, can't cutting and drilling or other process, make machinery damaged.
8. Two type of cutter locked for customer demand. The suitable cutter locked can be ordered and delivered together with the product when purchase.
(A)Hydraulic tool release for BT-#50 type.
(B)Screw tool release for NT or BT type. (Pull studs must remove for BT type)


Specifications
TYPEMax Tool Dia.Reduction RatioMax TorqueMax HorsepowerMax Use SpeedSpindle SteeringAccessory
N75Bψ1501:138KW1000N.m2000rpm#50/ForwardM16×P2.0×67L-4Pieces
