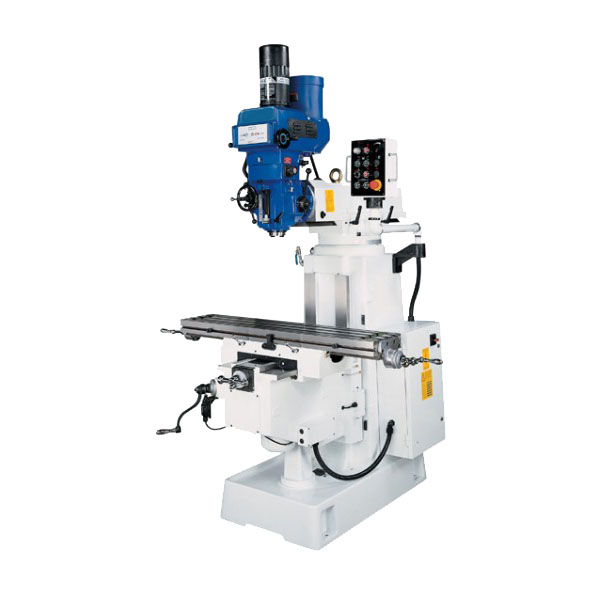

High Quality Vertical Mill

High Quality Vertical Mill

Hot
产品型号:
MW0800-038
原产地:
台湾
材质:
To be advised
颜色:
Final detail to be provided on formal quotation sheet

详细规格及用途描述

Features

Max. Table Load: 250-300 kgs
Headstock swivel R&L 45 °
Y & Z axis slides square ways to prevent deformation

Description

Milling Machine of A model: with Variable Speed Head; B model: Step Speed Head
Operation and maintenance easily
Supply from Taiwan with high quality

Specification




ITEMS
MW0800-038A
MW0800-038B


Table
Working Surface
1270 x 254


T Slot (WxNo.xPitch)
16x 3 x 63


Travel
XxYxZ-Manual
775x 400x 450


XxYxZ-Auto
700x 400x 450


Spindle
Spindle Nose
N.S.T. 40


Steps
Infinitely Vari.
10


Spindle Speed rpm
80-3800
60-3600


Swiveling Angle
45°,(R&L)


Quill Travel
127


Quill Feed/Rev.
0.04/0.08/0.15


Spindle Nose to Table
55-505


Spindle Center to Column
130-550


Cross Travel of Ram
420


Horizontal Rotation of Ram
360°


Motor
Vertical Spindle Feed Long.
5HP- 4P
3HP-4P


Coolant Pump
1/8 HP-2P


Size
Machine (LxWxH)
1480x 1435x 2330


N.W. (Kgs)
1500




Standard accessories:

Coolant equipment with tray
Slide way auto lubr. pump
Table elevating motor
Electric with control box

Optional Accessories:

X,Y power fee unit
Air power draw bar
Table elevating motor
Spindle taper N.S.T40

The product pictures are for your reference only: final spec & accessories based on formal quotation
