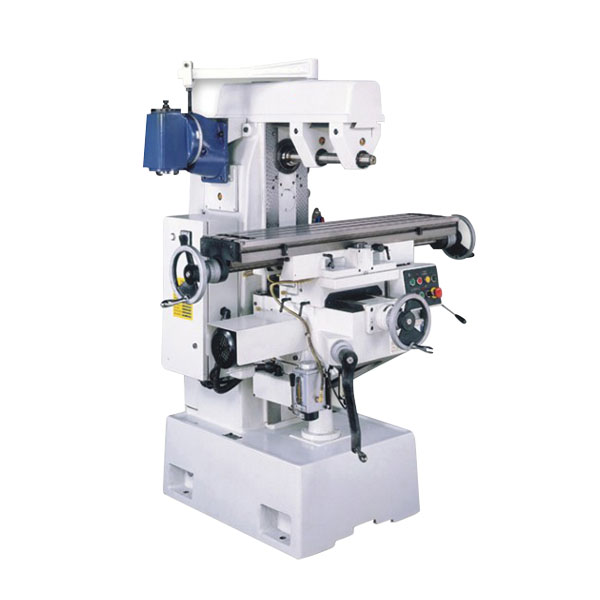

Universal Milling Machine
Universal Milling Machine Hot

产品型号:MW0800-055 原产地:台湾 材质:To be advised 颜色:Final detail to be provided on formal quotation sheet

详细规格及用途描述

Features

Table Swivel R&L 45 °
Maximum Table Load: 300 kgs
Vertical Head Attachment

Description

Main casting of milling machine: made of meehanite cast iron
Delivery from Taiwan for long life working

Specification

ITEMSMW0800-055TABLESIZE (LxW)1100 x 250T SLOT (WxNo.xPITCH)16 x 3 x 60SWIVEL (L & R)45 °VERT.SPINDLE NOSE TO TABLE0 ~ 342TRAVELX. Y. Z700 x 260 x 390FEEDLONG.FEED RATE18-310 (6 STEPS)LONG. RATE TRAVERSE mm/min1040LONG. RAPID TRAVERSE mm/min290VERTICALSPINDLESPINDLE NOSEN.S.T 40STEPS6SPINDLE SPEED RPM60 ~ 1100SPINDLE NOSE TO TABLE0 ~ 342CROSS TRAVEL OF RAM300HORIZONTALSPINDLESPINDLE NOSEN.S.T 40SPEED (RPM)60 ~1100 (6 STEP)CENTER TO BOTTOM OF RAM115CENTER TO TABLE0 ~ 390MOTORHORIZONTAL SPINDLE3HP~4P TABLE FEED (LONG) 3/4 HP~4PTABLE VERT.RAPID1/2 HP~6P -1/10COOLANT PUMP1/8 HP~2PSIZEMACHINE (Lx Wx H)1570x 1230x 1652NET WEIGHT (KGS)1000kgs

Standard accessories:

coolant equipment & tray
long, gear box feed
table elevating moto
adj.tools and tool box

Optional functions:

table swivel 45 ° L&R
vertical head attachment

The product pictures are for your reference only: final spec & accessories based on formal quotation
