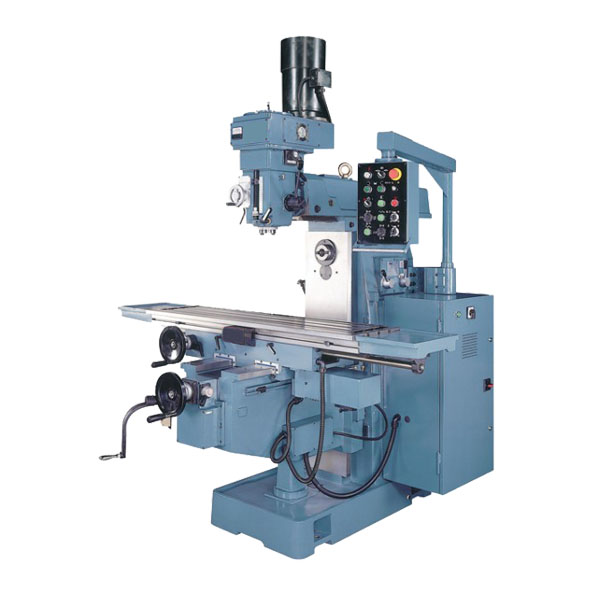

Vertical & Horizontal Mill(Taiwan Made)
Vertical & Horizontal Mill(Taiwan Made) Hot

产品型号:MW0800-041 原产地:台湾 材质:To be advised 颜色:Final detail to be provided on formal quotation sheet

详细规格及用途描述

Features

Max. Table Load: 450 kgs
X/Y Axes Ball Screw
X/Y Axes Servo Motor
Steel Telescopic on Y Axis

Description

Turret Type Inverter Variable Speed Head of milling machine
Solid construction: meehanite cast iron
Manufactured in Taiwan to perform efficiently

Specification




ITEMS
MW0800-041


Table
Working Surface
1270x 370 mm (1470x370 OPT.)


T Slot (WxNo.xPitch)
18x 3x 80


Travel
XxYxZ-Manual
930x 520x 440 mm


XxYxZ-Auto
920x 500x 420 mm


Feed
Long./Min.
30-3000 Vari.


Cross/Min.
30-3000 Vari.


Vertical/Min.
960 (30-1150 Vari. OPT.)


Spindle
Spindle Nose
N.S.T. 40


Steps
Inverter Variable


Spindle Speed (RPM)
60-3600


Swiveling Angle
45°(R&L)


Quill Travel
140


Quill Feeds/Rev.
0.035/0.07/0.14


Spindle Nose to Table
85-505mm


Spindle Center to Column
185-785mm


Cross Travel of RAM
600


Horizontal Spindle
Spindle Nose
N.S.T 40


Spindle Speed (RPM)
65-1500


Steps
9


Spindle to Botton of RAM
175


Spindle Center to Table
-25~395


Motor
Vertical Spindle
5HP-4P Inverter


Horizontal Spindle
5HP-4P


Feed X,Y Axes
AC Servo 750W


Feed Z Axes
1HP-12P (AC Servo 850W OPT.)


Coolant Pump
1/8HP-2P


Size
Machine (LxWxH)
2070x 1900x 2600 mm


N.W.
2650Kgs




Standard Accessories :

Coolant equipment
X,Y axis servo motor
X,Y axis ball screw
Vertical head auto lubrication pump
Slide way auto lubrication pump

Optional Function :

Vertical head attachment
Z axis servo motor
X axis travel 1120mm

The product pictures are for your reference only: final spec & accessories based on formal quotation
