DB25 Female Connector for Field Termination
- 產品型號:
- DGB25FT
詳細規格及用途描述

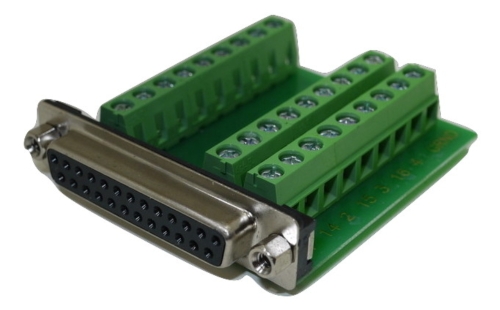

The DGB25FT field termination DB25 female connector offers a simple and efficient solution for terminating cables on-site. It features individual screw terminal connections for all 25 pins plus ground—no crimping, soldering, or special tools required. The clearly labeled terminal block ensures accurate, hassle-free installation. This connector is also panel mountable on surfaces up to 0.062" thick.
Features:
Terminal block enables fast and easy wiring changes
DB25 female connector style
No crimping or soldering needed for field termination
Gold-plated contacts ensure reliable, long-lasting connections
Panel mountable on surfaces up to 0.062" thick
