DB9 Female Connector for Field Termination with Screwless Terminal Block

DB9 Female Connector for Field Termination with Screwless Terminal Block

產品型號:
DB9F10STP

詳細規格及用途描述

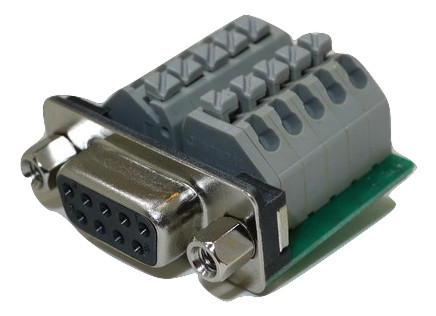

DB9F10STP field termination DB9 female connector offers a simple and efficient way to terminate cables in the field. It features individual spring clamp terminals for all 9 pins plus ground, allowing secure connections without any special tools. Just press the spring clamp, insert the wire, and release—it’s that easy. The clearly marked terminal block ensures accurate wiring. This connector is also panel mountable on surfaces up to 0.062" thick.

Features:
DB9 female connector for easy field termination
Panel mountable on surfaces up to 0.062" thick
No crimping or soldering required for quick installation
Gold-plated contacts ensure reliable connections through repeated mating cycles
Screwless spring clamp terminal block enables faster, easier wiring than traditional screw terminals
