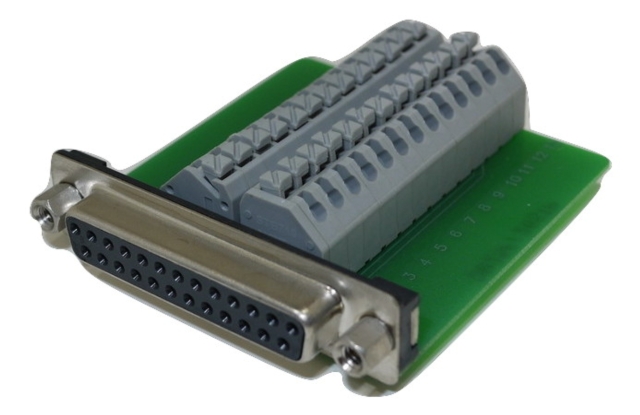

DB25 Female Connector for Field Termination with Screwless Terminal Block
- 產品型號:
- DB25F26STP
詳細規格及用途描述
The DB25F26STP field termination DB25 female connector offers a fast and reliable way to terminate cables on-site. It features individual spring clamp terminals for all 25 pins plus ground—no crimping, soldering, or special tools required. Just press the clamp, insert the wire, and release to secure the connection. The clearly labeled terminal block ensures accurate and efficient wiring. This connector is also panel mountable on surfaces up to 0.062" thick.
Features:
DB25 female connector for easy field termination
No crimping or soldering needed—tool-free installation
Gold-plated contacts ensure reliable, long-lasting connections
Panel mountable on surfaces up to 0.062" thick
Screwless spring clamp terminal block enables quicker, easier wiring than screw-type terminals
