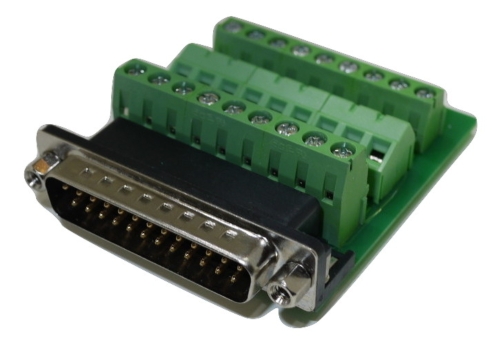

DB25 Male Connector for Field Termination
- 產品型號:
- DGB25MT1
詳細規格及用途描述
The DGB25MT1 field termination DB25 male connector provides a fast and convenient solution for on-site cable termination. It features individual screw terminals for all 25 pins plus ground—no crimping, soldering, or special tools required. The clearly labeled terminal block ensures accurate and hassle-free installation. This connector is also panel mountable on surfaces up to 0.062" thick.
Features:
Gold-plated contacts ensure consistent, reliable connections over multiple mating cycles
Terminal block design enables quick and easy wiring changes
DB25 male connector for convenient field termination
No crimping or soldering necessary—installs with standard tools
Suitable for panel mounting on surfaces up to 0.062" thick
