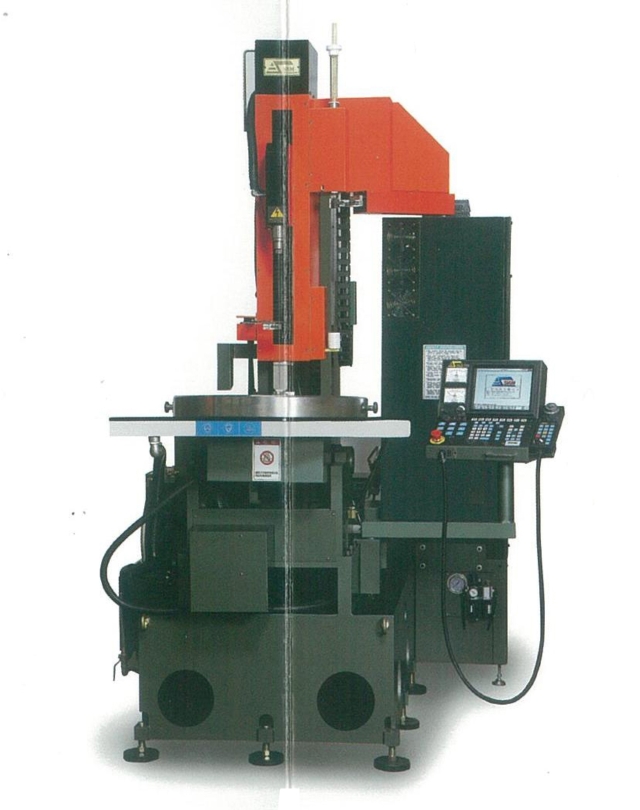

TD66
TD66

Model:TD66 Country of Origin:Taiwan

Detail Specifications / Descriptions

Specification TD66/U+V TD66/U
X-travel (NONE) (NONE)
Y-travel 500 mm 500 mm
Z-travel 750 mm(600) 750 mm(600)
Backslide travel 600 mm 600 mm
B-travel 360° 360°
U-travel 360° 360°
V-travel -10°~85° (NONE)
Table dimension Ø438 mm Ø438 mm
Work table dimension Ø910 mm Ø910 mm
Maximum workpiece dimension Ø900 mm Ø900 mm
Maximum distance-guide to table 280 mm 280 mm
Electrode pipe dimension Ø1.0mm Ø1.0mm
Automatic brass tube replacement electrode dimension (option) 400mm brass tubeØ0.8~Ø3.0/600mm brass tubeØ01.0~Ø3.0 (Special specifications are negotiable) 400mm brass tubeØ0.8~Ø3.0/600mm brass tubeØ01.0~Ø3.0 (Special specifications are negotiable)
Water tank capacity 300 Liter 300 Liter
Filter Element 2pcs 2pcs
Machine weight 2500 kgs 2400 kgs
Machine Height 2265~2765 mm 2265~2765 mm

TD66
