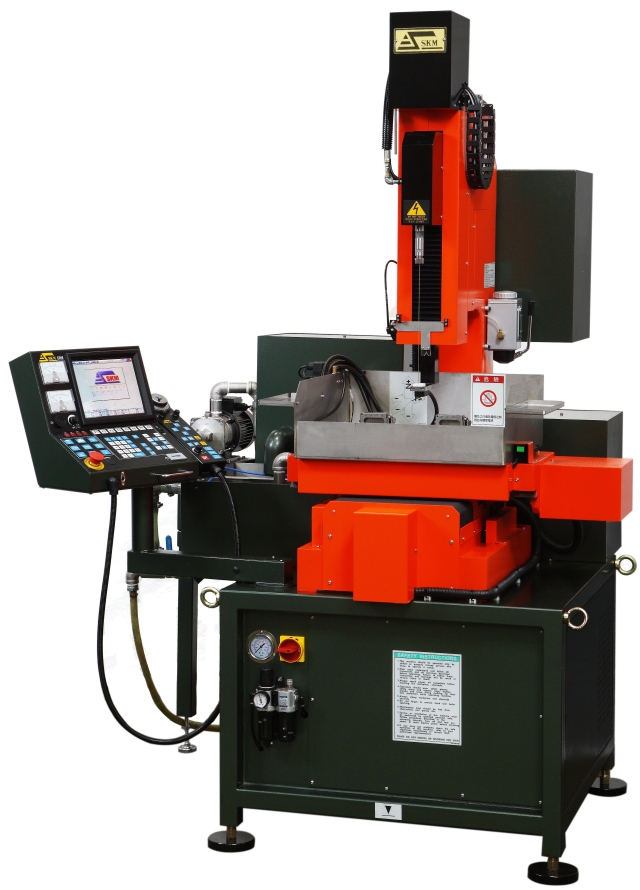

SD320
SD320

Model:SD320

Detail Specifications / Descriptions


SpecificationSD320(Immersion)
X-travel300 mm
Y-travel200 mm
Z-travel420mm
Backslide travel300 mm
B-traveloption
U-travelnone
V-travelnone
Table dimension410x210 mm
Work table dimension500x450x80 mm
Maximum workpiece dimension630x520x250 mm
Maximum distance-guide to table320 mm
Electrode pipe dimensionØ0.3~Ø3.0 mm
(special Ø0.1~6.0 mm)
Automatic brass tube replacement electrode dimension (option)400mm brass tubeØ0.8~Ø3.0/600mm brass tubeØ01.0~Ø3.0(Special specifications are negotiable)
Processing fluid capacity (pure water)30 Liter
Water tank capacity200 Liter(option)
Filter Elementoption
Machine weight1200 kgs
Machine Height2050~2370 mm

SD320
