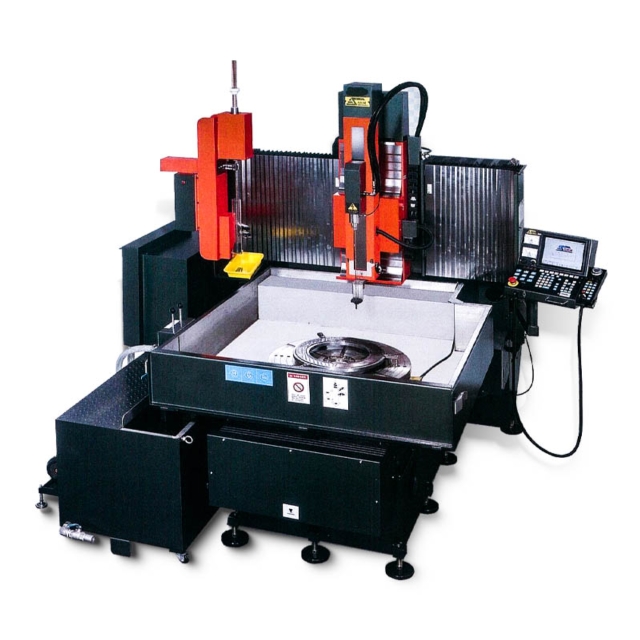

SD966/SD986 (Immersion)
SD966/SD986 (Immersion)

Model:SD966/SD986 Country of Origin:Taiwan

Detail Specifications / Descriptions

Machine Features:
X. Y. Z. C.4 axis computer control
Can be installed with automatic copper tube change(Patent)
Option processing:400-600mm

Specification SD966 (Immersion) SD986 (Immersion)
X-travel 900 mm 900 mm
Y-travel 600 mm 800 mm
Z-travel 750 mm(600) 750 mm(600)
Backslide travel 300 mm 300 mm
B-travel 360° 360°
U-travel 360° 360°
V-travel ±20° ±20°
Table dimension Ø700 mm Ø700 mm
Work table dimension 1250x1250x130 mm 1600x1600x160 mm
Maximum workpiece dimension Ø1100 mm Ø1500 mm
Maximum distance-guide to table 320 mm 320 mm
Electrode pipe dimension Ø0.3~Ø3.0 mm
(special Ø0.1~6.0 mm)
Ø0.3~Ø3.0 mm
(special Ø0.1~6.0 mm)
Automatic brass tube replacement electrode dimension (option) 400mm brass tubeØ0.8~Ø3.0 600mm brass tubeØ01.0~Ø3.0 (Special specifications are negotiable) 400mm brass tubeØ0.8~Ø3.0 600mm brass tubeØ01.0~Ø3.0 (Special specifications are negotiable)
Water tank capacity 500 Liter 1000 Liter
Filter Element 2pcs 2pcs
Machine weight 3330 kgs 3830 kgs
Machine Height 2250~2550 mm 2270~2570 mm

SD966/SD986 (Immersion)
SD966/SD986 (Immersion)
