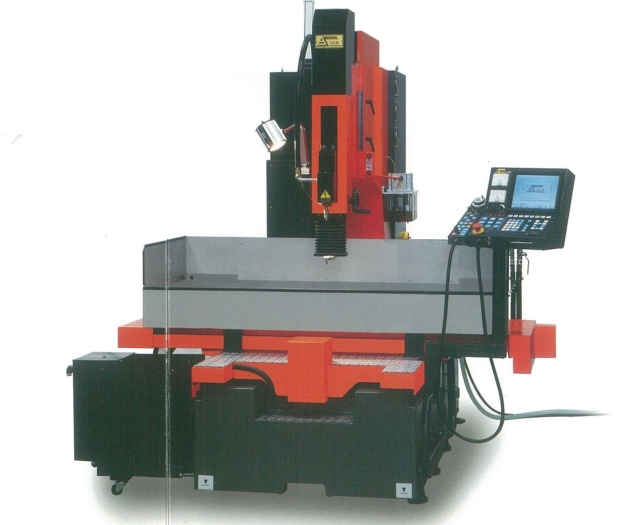

SD650 (Immersion)
SD650 (Immersion)

Model:SD650 Country of Origin:Taiwan

Detail Specifications / Descriptions

Machine Features:
X. Y. Z. C.4 axis computer control
Can be installed with automatic copper tube change(Patent)
Option processing:400-600mm


Specification SD650 (Immersion)
X-travel600 mm
Y-travel500 mm
Z-travelBrass tube 400 mm(750)Brass tube 600 mm
Backslide travel300 mm
B-travel360°
U-traveloption
V-traveloption
Table dimension1100x600mm
Work table dimension1760x800x60 mm
Maximum workpiece dimension1700x780x300 mm
Maximum distance-guide to table320 mm
Electrode pipe dimensionØ0.3~Ø3.0 mm
(special Ø0.1~6.0 mm)
Automatic brass tube replacement electrode dimension (option)400mm brass tubeØ0.8~Ø3.0/600mm brass tubeØ01.0~Ø3.0 (Special specifications are negotiable)
Processing fluid capacity (pure water)75 Liter
Water tank capacity200 Liter
Filter Elementoption
Machine weight3400 kgs
Machine Height2140~2440 mm

SD650 (Immersion)
