SD540
SD540

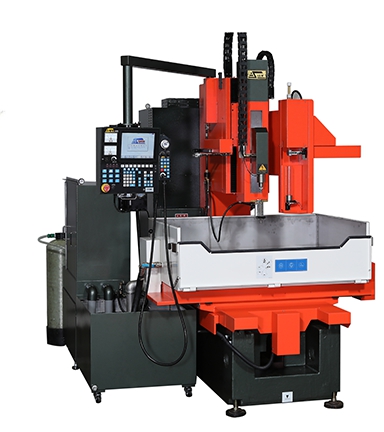

Model:SD540

Detail Specifications / Descriptions

Machine Features:
X. Y. Z. C.4 axis computer control
Can be installed with automatic copper tube change(Patent)
Option processing:400-600mm


SpecificationSD540 (Immersion)
X-travel500 mm
Y-travel400 mm
Z-travelBrass tube 400 mm(750)Brass tube 600 mm
Backslide travel300 mm
B-traveloption(ATC)
U-traveloption
V-traveloption
Table dimension810x480 mm
Work table dimension1220x860x120 mm
Maximum workpiece dimension1220x860x300 mm
Maximum distance-guide to table360 mm
Electrode pipe dimensionØ0.3~Ø3.0 mm
(special Ø0.1~6.0 mm)
Automatic brass tube replacement electrode dimension (option)400mm brass tubeØ0.8~Ø3.0/600mm brass tubeØ01.0~Ø3.0 (Special specifications are negotiable)
Processing fluid capacity (pure water)75 Liter
Water tank capacity300 Liter option
Filter Elementoption
Machine weight2500+200 kgs
Machine Height2305~2605 mm

SD540
