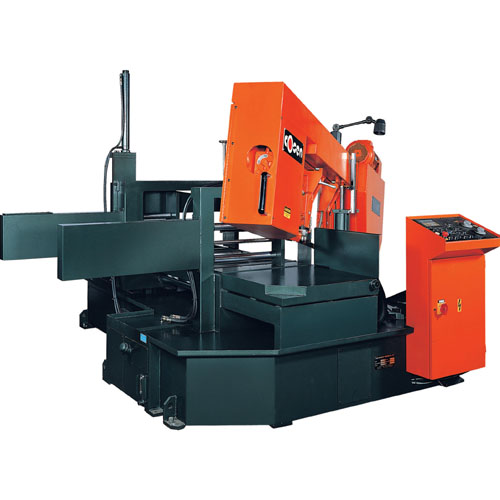

SNC Automatic Swivel Head Mitering

SNC Automatic Swivel Head Mitering

产品型号:
C-650MNC

详细规格及用途描述

Structure
* Swivel sawhead mitering from 90 to 60 degrees
* Hydraulic shuttle vise assembly
* Sturdy cast work table
* 620mm (24.5") solid discharge table with coolant return
Blade Drive
* Specialized worm gear reducer
* Infinitely variable blade speed
Blade Guidance & Lubrication System
* Carbide blade guides with roller bearings
* Two additional bearings to support blade from the top
* Cast iron guide arms supported by heavy-duty cast iron dovetail
* Automatic hydraulic blade tensioning device
* Integral coolant system
* Synchronized blade brush
Control & Automation
* Smart NC-20 (SNC-20) technology programmable up to 20 different jobs
* Automatic kerf compensation & automatic multiple indexing
* "Save-a-Blade" design to prevent tooth deformities
* Automatic shutdown
* Error code display for simplified self-diagnostics
* LCD screen with film type key pad, blade speed/life, feed vise position display
* Precision feed pressure & feed rate dual valve system
* Bundle/single cutting mode switch
* Conveniently designed control station
* Electrical components located inside the control box with main lockout disconnect
* Automatic work height selector & rapid blade approach system
Material Feeding & Clamping
* NC controlled material feeding
* Full stroke machine vises
* Sturdy cast work table with multiple horizontal rollers & 620mm solid discharge table
Safety
* Proximity switch for sensing blade slippage or breakage
* Interlock design in electrical and hydraulic system
* Conduits protection measure
* "Alert Orange" safety measure
Standard Accessories
* Additional flushing hose
* Adjustable work light
* Bi-metal saw blade
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
Design and specifications are subject to change without notice and obligation.
