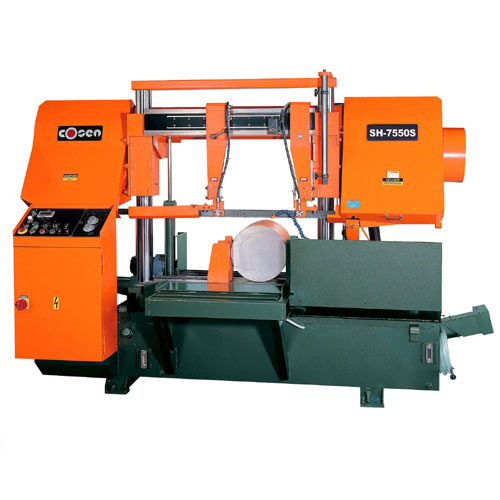

Semi-automatic Heavyduty Bandsaws
Semi-automatic Heavyduty Bandsaws

产品型号:SH-7550S

详细规格及用途描述

Structure
* Oversized precision ground, large dual columns
* Cross link connecting two columns for enhanced structural strength
Blade Drive
* Specially designed gearbox for high lateral pressure
Blade Guidance & Lubrication System
* Cam lock carbide blade guides with bearing guides
* Two addtional guides to support the blade from the top
* Automatic hydraulic blade tensioning device
* Integral coolant system
* Pitch design for coolant drainage
* Synchronized power driven blade brush
Control & Automation
* PLC control
* Precision feed pressure & feed rate dual valve system
* Work height selector & air gap eliminator
Material Feeding & Clamping
* Split vise jaws
* Full stroke hydraulic front and rear vises
* Ductile cast iron vises with replaceable hardened wear plates
Safety
* Proximity switch for sensing blade slippage or breakage
* Interlock design in electrical and hydraulic system
* Conduits protection measure
* "Alert Orange" safety measure
Standard Accessories
* Blade "clip" device for easy blade change
* Adjustable front plate for cut-off stock
* Additional flushing hose
* Bi-metal saw blade
* Built in work light
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
