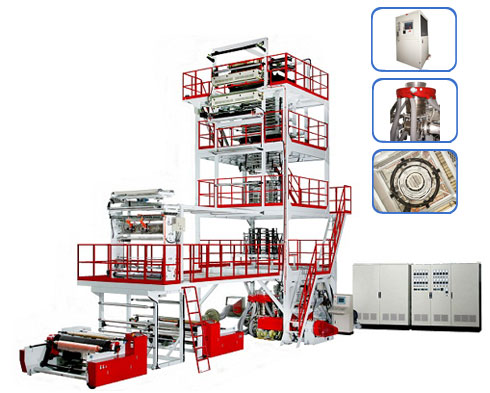

A/B/C Triple Layer Blow Film Machine
Detail Specifications / Descriptions
●Reduce the cost of raw material.
●Combine the properties of the different raw material.
●It could get uniformly thickness of the film when it equips the oscillating take-off unit.
●Percent value of material could be controlled more effective in each layer by equipping the volumetric dosing device.
●When adopting the latest design of the automatic winder and equipping the tension control device, it could be controlled more precise in the winding.
●We are the professional manufacturer and experience supplier for multi-layer blown film machine.
●This machine could be combined different characteristics of plastic raw material in the same work.
●Oscillating take-off unit is driven by gear transmission. ●The gear transmission which is well precision and good stability can make the film more uniform of the thickness. Its’ rotational angle could be attained to 360°.
It could be equipped the EPC device which could be controlled to get neat edge for film in the winding.
●Auxiliary take off motor is stably driven with SERVO motor.
●The tensility is controlled by low friction cylinder.
●The bubble film could be covered approach of circle with intersection type of fixed ring.
●We are the professional manufacturer and experience supplier for multi-layer blown film extrusion.
TITLE
65-55-55MM TRIPLE LAYER HDPE/ LDPE BLOW
FILM MACHINE WITH OSCILLTING TAKE-OFF UNIT
MODEL
SE/HL-65-55-55-OSC
MATERIAL
HDPE/ LDPE/ LLDPE
OUTPUT
120-140 KG/HR
EXTRUDER
SINGLE TYPE
DRIVE
MOTOR
75 HP + INVERTER
1 SET
50 HP + INVERTER
2 SET
SPEED RANGE
STEPLESS
SCREW DIAMETER
65 MM
1 SET
L/D RATIO
55 MM
1 SET
TEMP. CONTROL
20 ZONES
DIE
TYPE
TRIPLE LAYER A/B/C DIE
LIP DIAMETER
ψ200/ 250 MM
COOLING
UNIT
AIR BLOW
10 HP + INVERTER
AIR RING
TYPE
TRIPLE LAYER
MATERIAL
ALUM. CASTING
OSCILLATING
TAKE-OFF UNIT
HEIGHT
10.0 M
ROTATING MOTOR
1/2 HP + INVERTER
TAKE-OFF MOTOR
2 HP + INVERTER
AUXILLIARY TAKE-OFF MOTOR
2 HP SERVO + INVERTER
FIXED RING
CONTROL BY ELECTRIC
DOUBLE
WINDER
TYPE
BACK TO BACK BY FULL AUTOMATIC
CONTROLLER
PLC CONTROL SYSTEM (HMI TOUCH SCREENS)
WINDING WIDTH
1100 MM
DRIVE MOTOR
2 HP + INVERTER
2 SET
BOBBIN CHANGE SYSTEM
FULL AOTUMATIC
WINDING ROLLER
PNEUMATIC TYPE
SLITTING DEVICE
CYCLIC PNEUMATIC SLITTING KNIFE
TWO-SIDE SLITTING
FLOOR DIMENSION
12.0 × 3.8 × 10.0 M
MACHINE WEIGHT
12003 KG
POWER REQUIRE
170 KW (APPROXIMATELY)
