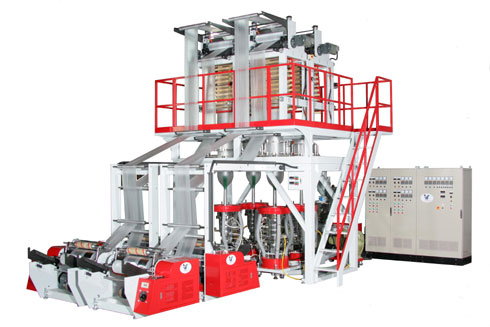

Hdpe Four Head Blown Film Machine
- Model:
- HD-75FD-600
Detail Specifications / Descriptions
●It’s economic for saving cost and reducing the cost of raw material.
●It could be reduced the electricity loss more effective when equipping the inverter control.
●Introduce the latest design idea.
●It has economic purpose and can produce four different sizes film as four machines do at the same time.
●The take-off unit is pneumatic type in pinch roller and operated by solenoid valve for an easy adjustment
MODEL
SE/HD-FD
EXTRUDER
SCREW DIA.
75 MM
65 MM
DRIVE MOTOR
60 HP x 6P
50 HP x 6P
INVERTER
DIE
φ60 MM
φ50 MM
TAKE-OFF UNIT
ROLLER WIDTH
600 MM
500 MM
TAKE-OFF MOTOR
1 HP DC
WINDING UNIT
SURFACE FRICTION TYPE
DRIVE MOTOR
0.3 KG-M TORQUE MOTOR
OPTION EQUIPMENT
SURFACE TREATER
EPC DEVICE
WIDTH COTROLLER
AUTO LOADER
