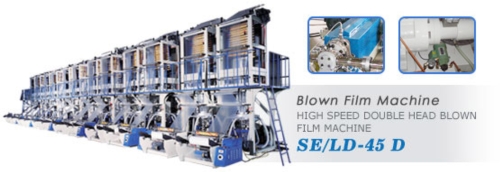

High Speed Double Head Blown Film Machine
- Model:
- SE/LD-45D
Detail Specifications / Descriptions
●Introduce the latest design idea.
●Adopt the safety protection design for the whole device.
●It could be reduced the electricity loss more effective when equipping the inverter control in the whole device.
●Professional, Technology, Service & Quality are doing firstly for us.
●We are the professional manufacturer and experience supplier for blown film machine.
●For a even film thickness, it can choose the rotating die.
●A manual fast screen change can save the time of change screen and is a convenient equipment.
●It is equipped with an inverter to ensure synchronicity of take-off unit and winding unit. The take-off unit is pneumatic type in pinch roller and operated by solenoid valve for an easy adjustment.
●It has economic purpose, can produce at the same time two different sizes film as two machines do.
Model
SE/HD-45D
SE/LD-45D
SE/HD-55D
SE/LD-55D
Applicable resins
hdpe
ld, lldpe
hdpe
ld, lldpe
Film width (mm)
100 - 400
100-400
150-500
150-500
Film thickness (mm)
0.01 - 0.05
0.02 - 0.15
0.01 - 0.05
0.02 - 0.15
Extrusion output
(kg/hr max.)
30-50
40-60
50-70
60-80
Extruder
Screw type
Mixing
Screw diameter (mm)
45
45
55
55
L:D ratio
30:1
30:1
30:1
30:1
Drive motor (hp)
25
25
40
40
Heating capacity
(kW)
6
6
9
9
Barrel cooling
system
Air cooling system
Temp. Control
(zones)
3
3
3
3
Die
Double head type
Diameter (mm)
40, 60
50, 100
50, 75
75, 150
Air blower (hp)
3x2
3x2
3x2
3x2
Temp. Control
2x2
2x2
Take-off unit
Double line type
Take-off speed
80 m/min max.
DC Drive motor (hp)
1x2
1x2
1x2
1x2
Width of roller
(mm)
500
500
610
610
Winding unit
Type
Surface friction
Drive motor torque
0.3 m-kg x2
0.3 m-kg x2
0.3 m-kg x2
0.3 m-kg x2
Floor dimensions
(m)
4.3 x 2.1 x 3.8
4.3 x 2.45 x 3.8
4.7 x 2.7 x 4.3
4.7 x 2.7 x 4.3
Power required (kW)
35
35
55
55
