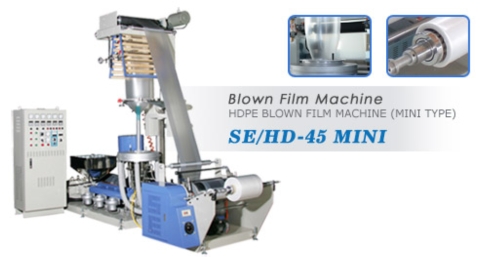

Hdpe Blown Film Machine (Mini Type)

●Introduce the latest design idea.
●Adopt the safety protection design for the whole device.
●It could be reduced the electricity loss more effective when equipping the inverter control in the whole device.
●Professional, Technology, Service & Quality are doing firstly for us.
●We are the professional manufacturer and experience supplier for blown film machine.

●It adopts inverter motor which is stable and low power consumption
●Die mould is designed to make the melted resin little resistance and dispread average to get more output at same pressure.
●It is specialized for film width within 600mm and can be equipped with rotating die and manual screen changer as optional.




Model


SE/HD-45 MINI




Film
width (mm)


150-500




Film
thickness (mm)


0.01-0.05




Extrusion
output (kg/hr max.)


25-40




Extruder


Screw
type


Mixing




Screw
diameter (mm)


45




L:D ratio


28:1




Drive
motor


20 hp +inverter




Heating
capacity (kW)


6.7




Cylinder
cooling system


air cooling system




Die


Diameter
(mm)


60




Auto-thermo
controller (sets)


6




Air
blower (hp)


3




Air ring
(sets)


1




Take-off
unit (with elevator)


Take-off
speed (m/min max.)


80




DC Drive
motor (hp)


1




Roller
Width (mm)


650




Winding
unit


Type


Surface friction




Drive
motor (torque)


0.3 m-kg




Floor
dimensions (m)


3.3 x 1.5 x 3.0




Machine
weight (kg)


1500




Power
required (kW)


20
