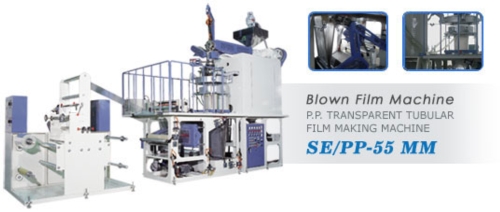

P.P. Transparent Tubular Film Making Machine
- Model:
- SE/PP-55MM
Detail Specifications / Descriptions
This film can be uniform with rotary die in this blow film machine.
The film can be increased strongly and transparently by hot water bath and heating blower.
The simple boom is not only supporting the die weight, but helping the engineers to disassemble the die head.
The film can be wound smoothly and tightly by winding unit with the torque motor.
We are the professional manufacturer and experience supplier for PP blown film machine.
Model
SE/PP-35
SE/PP-45
SE/PP-55
SE/PP-65
Film width (mm)
50 - 300
100 - 400
150 - 550
200 - 700
Film thickness (mm)
0.02 - 0.06
0.02 - 0.08
0.02 - 0.08
0.02 - 0.08
Output (kg/hr max.)
10 - 20
18 - 30
30 - 50
45 - 65
Extruder
Screw diameter (mm)
35
45
55
65
L:D ratio
30:1
30:1
30:1
28:1
Drive motor (hp)
7 1/2
15
20
30
Heating capacity (kW)
4.8
8
10
14
Die
Diameter (mm)
75, 100
100, 150
150, 250
200, 300
Control panel
Auto thermo controller
4 sets
5 sets
4 sets
6 sets
Air cooling ring & blower
1 set
1 set
1 set
1 set
Take-off unit
Drive motor (hp)
1
1
1
2
Roller width (mm)
400
660
760
1000
Dry blower (kW)
1.5
1.5
1.5
2
Water sizing ring
8 pcs
8 pcs
8 pcs
8 pcs
Winding unit
Drive motor torque
0.2 m-kg
0.3 m-kg
0.3 m-kg
0.5 m-kg
Floor dimensions (m)
2.8 x 1 x 2.5
3.6 x 1.6 x 3
3.6 x 1.6 x 3.1
5.2 x 2 x 4
Machine weight (kg)
1500
2000
2500
3000
Power required (kW)
12
18
26
35
