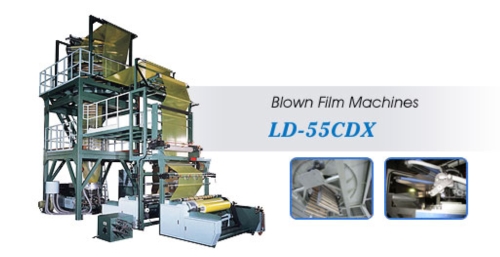

Blown Film Machine
- Model:
- Multi-layer extrusion (SE/LD-55CDX)
Detail Specifications / Descriptions
●Introduce the latest design idea.
●Adopt the safety protection design for the whole device.
●It could be reduced the electricity loss more effective when equipping the inverter control in the whole device.
●Professional, Technology, Service & Quality are doing firstly for us.
●We are the professional manufacturer and experience supplier for blown film machine.
●Extruder can produce single or two layers as per requirement.
●Both take-off unit and winding unit use inverter or servo motor to ensure synchonicity and stability. ●Pinch roller of take-off unit is pneumatic type and operated by solenoid valve for a convenience adjustment.
●Slitting device with several blades to get various film sizes.
●Oscillating take-off unit is equipped with EPC equipment.
Model
SE/LD-55CDX
SE/LD-65CDX
Film width (mm)
1200
1500
Film thickness (mm)
0.02 - 0.15
0.02 - 0.15
Extrusion output (kg/hr)
140
200
Extruder
Diameter (mm)
55
65
L:D ratio
30 / 1
30 / 1
Drive motor (hp)
30
60
Heat capacity (kW)
65
101
Temperature Control (zones)
13
13
Die
SCREEN CHANGER
LONG LIFE FILTER
Lip diameter (mm)
250 / 300
250 / 350
TAKE-UP UNIT
Drive motor (hp)
2
2
Roller width (mm)
O210×1300
O210×1600
GUIDE MOTOR (hp)
2
2
Take-off unit (with elevator)
Drive motor (hp)
2
2
Roller width (mm)
O165×1300
O165×1600
Winding unit
Floor dimensions (m)
11.3 x 3.4 x 7.1
12 x 3.8 x 9.1
Machine weight (kg)
7500
8500
Power required (kW)
120
160
