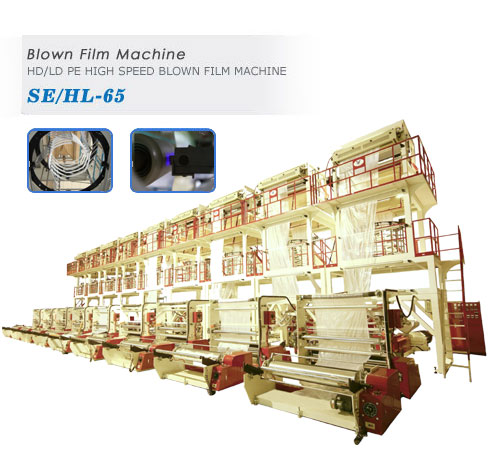

HD/LDPE High Speed Blown Film Machine
- Model:
- SE/HL-65
Detail Specifications / Descriptions
●Introduce the latest design idea.
●Adopt the safety protection design for the whole device.
It could be reduced the electricity loss more effective when equipping the inverter control in the whole device.
●Professional, Technology, ●Service & Quality are doing firstly for us.
●We are the professional manufacturer and experience supplier for blown film machine.
●It can be designed and produced as per customer’s requirement.
●Extruder can be equipped
with the long life filter which is optional.
●The accurate die mould and effective air ring cooling system to get good film quality.
●There are single and double in winding, it can be selected for slitting, or slitting with sealing device and is a multi-purpose equipment.
●Automatic design. It adopts air cylinder in both winding unit and take-off unit for easy operation and maintenance.
●We are the professional manufacturer and experience supplier for plastic bag making plant.
Model
SE/HL-45
SE/HL-55
SE/HL-65
Film width (mm)
180 - 600
300 - 900
350 - 1200
Film thickness (mm)
HD 0.01 - 0.05
LD 0.02 - 0.15
0.15 - 0.05
0.02 - 0.15
0.02 - 0.05
0.02 - 0.15
Extrusion output
(kg/hr)
30-40
40-65
55-85
Extruder
Screw type
Mixing type
Diameter (mm)
45
55
65
L:D ratio
30:1
30:1
30:1
Drive motor (hp)
25
40
60
Heat capacity (kW)
7.2
10
12
Cylinder cooling
system
air cooling system
Temperature Control
(zones)
5
5
6
Die
Lip diameter (mm)
HD 50 & 75
LD 150
75 & 100
200
100 & 120
350
Air blower (hp)
3
5
7 1/2
Air ring (set)
2
2
2
Take-off unit (with
elevator)
Take-off speed
80 m/min max.
DC Drive motor (hp)
1
1
2
Roller width (mm)
760
1000
1400
Winding
unit
Type
Surface friction type
Drive motor torque
0.3 m-kg
0.5 m-kg
0.5 m-kg
Floor dimensions
(m)
4.9 x 2.2 x 4.0
5.1 x 2.4 x 4.3
5.4 x 2.7 x 6.0
Machine weight (kg)
2000
2500
3000
Power required (kW)
25
34
50
