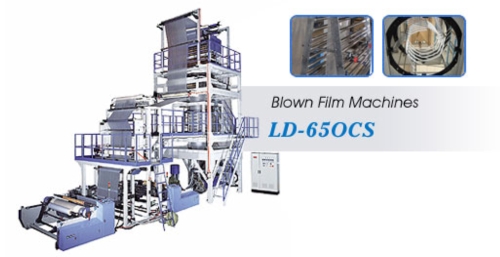

Blown Film Machine
- Model:
- SE/LD-65OCS
Detail Specifications / Descriptions
●Introduce the latest design idea.
●Adopt the safety protection design for the whole device.
●It could be reduced the electricity loss more effective when equipping the inverter control in the whole device.
●Professional, Technology, Service & Quality are doing firstly for us.
●We are the professional manufacturer and experience supplier for blown film machine.
●The air from the air ring is stable. The air ring can be designed for single, two layers, and three layers as per requirement.
●Fixed ring is controlled by electric and easy operation and practical utility.
●Collapser has two types, steel roller and latticed wood. It also can use both which has patent to ensure film quality better.
●Winding unit operated by computer screen, full automatic cutting and bobbin change with tension control and connected with take-off unit to get more stable and practical operation at the same time.
Model
SE/LD-55OCS
SE/LD-65OCS
Film width (mm)
1200
1500
Film thickness (mm)
0.02 - 0.15
0.02 - 0.15
Extrusion output (kg/hr)
80
130
Extruder
Diameter (mm)
55
65
L:D ratio
30╱1
30╱1
Drive motor (hp)
40
56
Heat capacity (kW)
65
101
Temperature Control (zones)
6
6
Die
SCREEN CHANGER
LONG LIFE FILTER
Lip diameter (mm)
250╱300
250╱350
TAKE-UP UNIT
Drive motor (hp)
2
2
Roller width (mm)
O210×1300
O210×1600
GUIDE MOTOR (hp)
2
2
Take-off unit (with elevator)
Drive motor (hp)
2
2
Roller width (mm)
O165×1300
O165×1600
Winding
unit
Floor dimensions (m)
11.3 x 3.4 x 7.1
12 x 3.8 x 9.1
Machine weight (kg)
7500
8500
Power required (kW)
70
100
