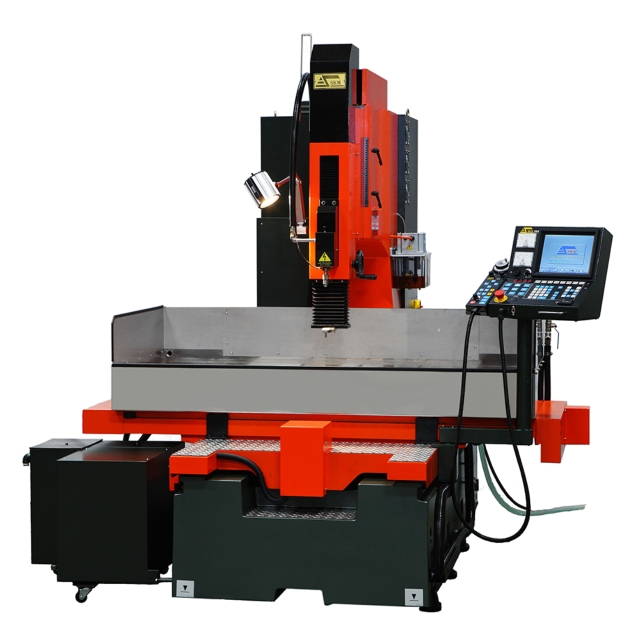

SD120
SD120

Model:SD120

Detail Specifications / Descriptions


Specification SD120 (Immersion)
X-travel600 mm
Y-travel500 mm
Z-travel420 mm
Backslide travel300 mm
B-travel360°
U-traveloption
V-traveloption
Table dimension1100 x 600 mm
Work table dimension1760x800x60 mm
Maximum workpiece dimension1700x780x300 mm
Maximum distance od table quill (Guide)320 mm
Electrode pipe dimensionØ0.3~Ø3.0 mm
(special Ø0.1~6.0 mm)
Automatic brass tube replacement electrode dimension (option)400mm銅管Ø0.8~Ø3.0 600mm銅管Ø01.0~Ø3.0 (Special specifications are negotiable)
Processing fluid capacity (pure water)75 Liter
Water tank capacity75 Liter
Filter Elementoption
Machine weight3400 kgs
Machine Height2140~2440 mm

SD120
