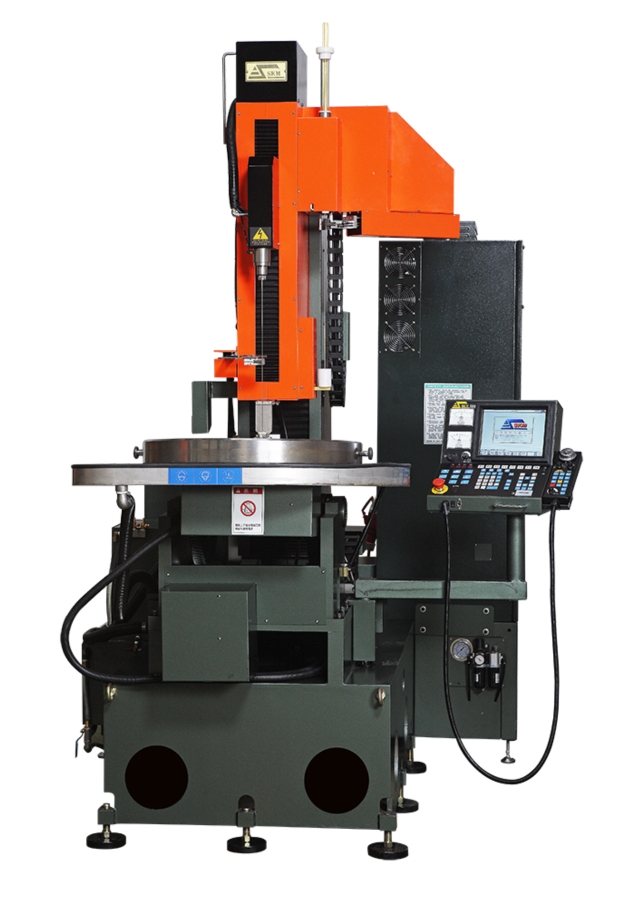

Tire Mold Dedicated Hole Drilling EDM
- Model:
- TD66
Detail Specifications / Descriptions
- 1. Y、Z、C、U、V、B 6 axis use AC servo motor. High efficiency and precision .
- 2. Automatic Brass Change System (PATENT). Maximum brass store 60 pcs. Can be 24hr uninterrupted machining ,improve machine effectiveness.
- 3. Using brass length 600 mm. Reduce the loss of brass.
- 4. Exclusive using special hole drilling through detector. Reduce drilling time.
- 5. Processing fluid using ionized water ,with circulation filtration system. High machine effectiveness.
- 6. V axis -10°~ 80° , U axis 0°~360° combined with computer automatic control. Suitable for all tire mold vent hole processing.
- 7. Y、Z、C axis design using linear guide ,with precision ball screw.
High-precision and long life. - 8. Use 64 bit industrial computer (IPC) , 8 axis motion control card. high stability and reliability.
- 9. Option addition SKM serve system. Via the internet instant monitoring machine processing, program file transfer.
- 10. Use dialogue editor, Simple and easy to understand. Also combined ISO code acceptable CAD/CAM format files can be widely used.
- 11. Special machining code can be set up to 6 different depth and drilling EDM.
Condition for each hole processing. To raise substantially for machining efficiency.
| Specification | TD66 | |
|---|---|---|
| X-travel | ||
| Y-travel | 500 mm | |
| Z-travel | 750 mm | |
| Backslide travel | 600 mm | |
| B-travel | 360° | |
| U-travel | 360° | |
| V-travel | -10°~85° | |
| Table dimension | Ø438 mm | |
| Work table dimension | Ø910 mm | |
| Maximum workpiece dimension | Ø900 mm | |
| Maximum distance od table quill (Guide) | 280 mm | |
| Electrode pipe dimension | Ø0.3~Ø3.0 mm (special Ø0.1~6.0 mm) | |
| Automatic brass tube replacement electrode dimension (option) | 400mm銅管Ø0.8~Ø3.0 600mm銅管Ø01.0~Ø3.0 (Special specifications are negotiable) | |
| Processing fluid capacity (pure water) | 45 Liter | |
| Water tank capacity | 55 Liter | |
| Filter Element | 1 pcs | |
| Machine weight | 2500 kgs | |
| Machine Height | 2265~2765 mm | |
